Cáp mạng DINTEK CAT.6 U-FTP

Cáp mạng DINTEK CAT.6 U-FTP

Mã hàng : 1107-04004CH

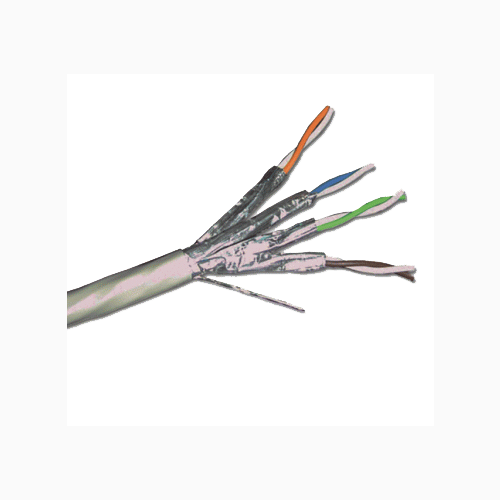

–       Cáp mạng Dintek CAT.6  U-FTP 4-pairs, bọc nhôm chống nhiễu từng đôi cáp, 305m/cuộn.

Application:

–       Voice

–       Fast Ethernet(IEEE802.3u)

–       100Vg-AnyLAN(IEEE 802.12)

–       Token Ring(IEEE 802.5)

–       TP-PMD(ANSI X3T9.5)

–       100Base-T Ethernet(IEEE 802.5)

–       155/622 Mbps 1.2/ 2.4 Gbps ATM

–       1000Base-T Ethernet

–       550 MHz Broadband video

–       According to UL444 Communications Cables, UL AWM  style 2835

–       TIA/EIA 568B.2-1

–       Impedance:100±15 ohms

–       Mutual Capacitance: nom. 13.6pf/ft

–       DC Resistance: max. 6.8ohm/100m at 20°C

–       Voltage rating: 30V

–       Rated temperature: 60°C

–       No. of Pairs: 4 pair

–       Size of conductor: 23AWG (solid anneal copper wire)

–       Overall Diameter:7.4±0.3mm

–       Individual Shielding: Aluminum-foil laminated tape.

–       Jacket material: PVC or LSZH, flame retardant and/or CM grade.

• Sản xuất tại Taiwan
